Rubicon Express 3" suspension lift

Click on any image with a border to view the full-size image.

Hmmmm...

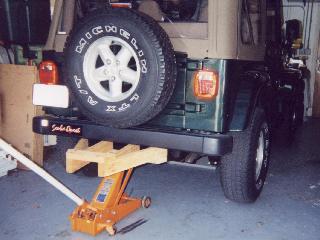

What would a 3" lift look like?

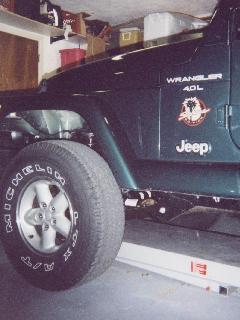

Front view of "jack-lift" ---->

The FedEx man
Cometh with
gifts from
Rubicon Express
11:00 AM

Hmmmm..., what did I get for my $709?

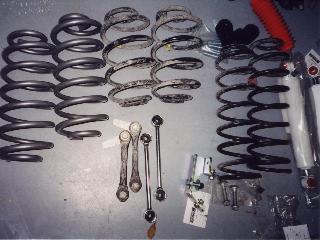

All the pieces unwrapped!
(they missed the bar-pins even
after I EXPLICITLY reminded
them to not to forget because I got
RS9000's instead of the DT's)
I am still waiting RE!

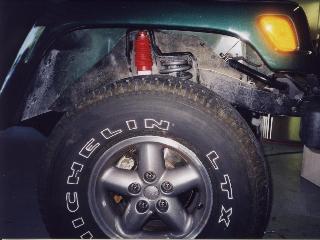

Had the front installed before
I went to work at 2PM
(except swaybar)
I used my press to remove the
bar-pins from the stock shocks

Comparison of old and new
(will post specs)

First view of the lift!

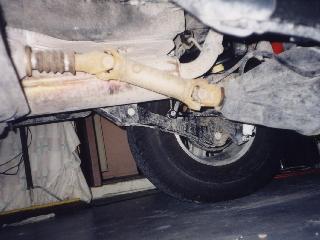

Driveline angle before lowering
T-case

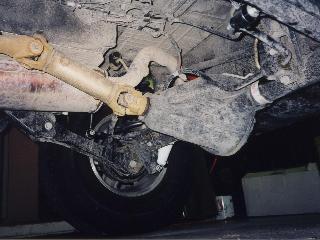

Driveline angle after lowering
T-case
(I apologize for the
different camera angles, the pinion is pointed up a few degrees more)

*You might notice the lack of detail, this was my first lift, and though mechanically competent, I had not fully grasped what was involved in lifting the suspension and the effects it would have on the suspension geometry. I did not realize the effects until I took the lift off to trade in for the yellow 2000. (I did not correct the caster or pinion angles, and the handling was scary at times, two particular occasions, it went in to a hard 'tank slapper' as motorcyclists put it, and others in traffic next to me had real big eyes if you know what I mean.) It was then that I decided to wait until I thought the process through and fully documented the existing geometry to baseline what would be required for a 'factory' ride.
